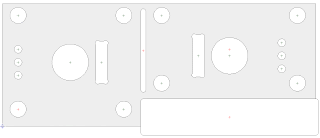

Rotary encoder brackets, made from Perspex

Lower inner front plate, 3mm aluminium

Upper inner front plate, 3mm black anodized aluminium

Led spacer/aligner, 3mm Perspex
The two inner front plates, one holding the keyboard and keypad, and one for the potmeters, have been ordered from Schaeffer-ag.de. In addition, spacers for the leds and parts for holding the rotary encoders used for tempo and mode select, all made out of perspex are ready and sent to Schaeffer. Total price for everything is 166.88 euros.
