Friday, 19 September 2008

Panel pics

Pictures of the latest panels:

Spacers for the digital givers (tempo dial and mode dial). I've had these made earlier but they turned out wrong.

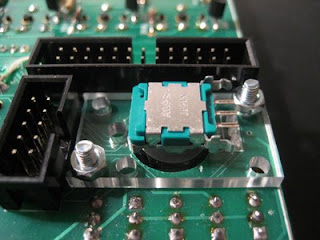

A giver after mounting but before soldering

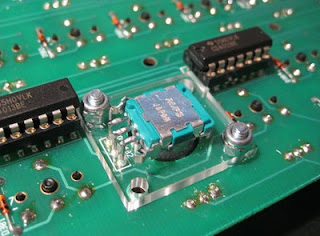

After soldering. Seems like I over-engineered again, twice the holes necessary for mounting the parts...

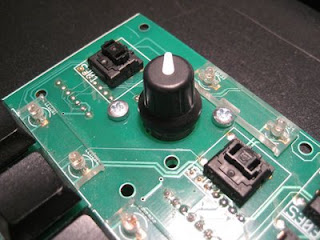

Left dial (tempo) after mounting

Right dial (mode) after mounting

Complete keyboard. I've removed the engraved button caps to prevent damage while soldering etc.

Display. It looks a lot better in real life. I'm amazed by the quality!

Zoom in on the logo. Looks great!
